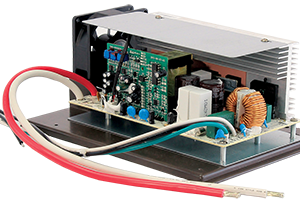

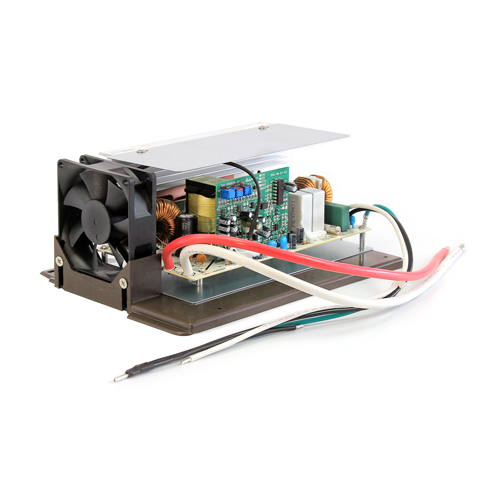

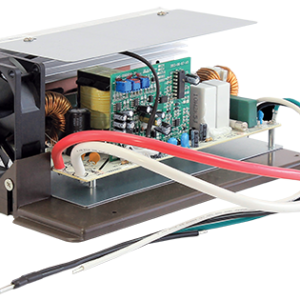

This WF-8955 main board assembly is a drop-in replacement that brings modern battery chemistry intelligence to your power centre. The exclusive Auto-Detect technology automatically recognises whether your batteries are lead-acid or lithium-ion and adjusts the charging profile accordingly—no switches or buttons to set manually. Installation is quick: secure with two screws and connect three AC and two DC wires, requiring no full system rewiring.

Multi-stage charging and current monitoring prevent over- and under-charging, maximising battery life. Optional reverse polarity detection meets the latest RVIA and NEC electrical standards, with audible alarm notification for installation verification.

• 55 Amp DC output
• Converts 105–130 Volt AC to 13.2–14.4 Volt DC
• 750 Watt continuous output, 950 Watt peak
• Auto-Detect battery chemistry recognition
• Multi-stage charging
• Reverse battery and thermal protection
• Short-circuit protection
• Integrated LED mode indicators
• Integrated reverse polarity detection option
