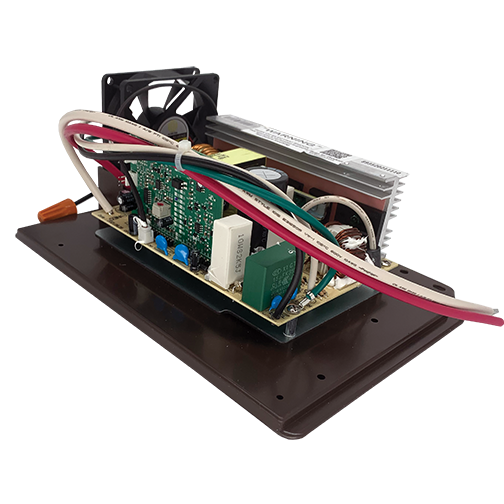

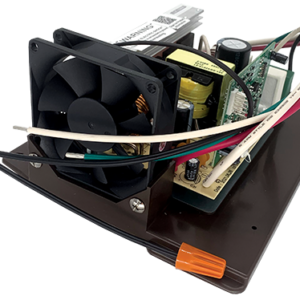

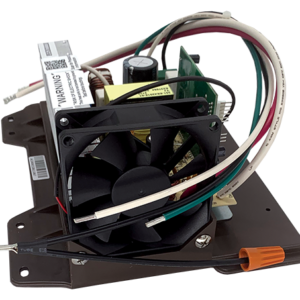

This 35-amp converter section replaces the lower power unit on any compatible series power centre. Installation takes minutes: simply secure with two screws and connect three AC and two DC wires—no re-wiring of the entire system required. It handles three-stage battery charging automatically, transitioning through absorption, bulk, and float modes to extend battery life.

• 35 Amp DC output
• Converts 105–130 Volt AC to 13.2–14.4 Volt DC
• 475 Watt continuous output, 600 Watt peak
• 80% efficiency
• Short-circuit and reverse battery protection
• Automatic three-stage charging
• Dimensions: 9.5 Inch × 7 Inch × 3.9 Inch
