Specifications

SKU 10-0169
Mfg # A01-2004BKVP
Brand Valterra
Weight 0.354 kg
Dimensions 29.51 × 24.28 × 10.79 cm
Inlet Connection City Water Female Threads and Gravity Feed
Mounting Type Recessed Mount
Recess Depth 2-3/4 Inch
Outlet Connection 1/2 Inch Male Threads
Tank Vent 1/2 Inch Tank Vent
Cutout Size (IN) 5-7/8 Inch Width x 4-3/4 Inch Height

Description

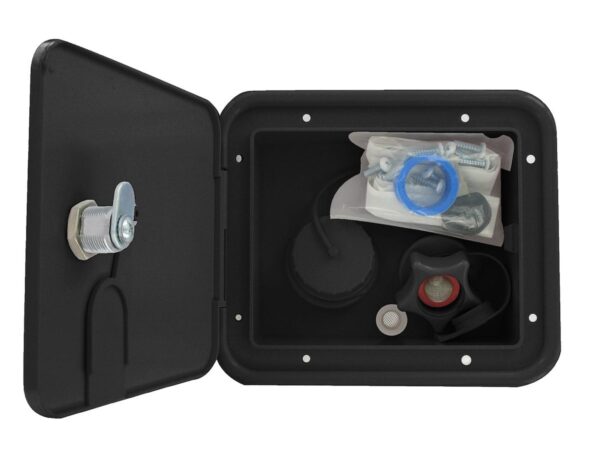

This recessed-mount inlet accepts both gravity fill and city water connections, offering flexibility for different RV configurations. The lockable hatch provides security whilst the integrated 1/2 inch air vent speeds tank filling. Black plastic construction is paintable to match your RV exterior and resists UV fading.

  • Dual inlet: city water (female threads) and gravity feed
  • 1/2 inch air vent accelerates tank fill
  • Recessed mounting, 2-3/4 inch depth
  • Hatch opening: 5-7/8 inch wide by 4-3/4 inch tall
  • 1/2 inch male pipe thread outlet to tank
  • Built-in one-way check valve and dust cover
  • Lockable hatch, UV-stabilised plastic construction
