Specifications
| SKU | 62-1641 |
|---|---|
| Mfg # | SEC-2425UL |
| Brand | Samlex America |
| Weight | 15 kg |
| Dimensions | 33.02 × 24.38 × 9.65 cm |
| Count Of Batteries Charged | 2 |
| Battery Type | AGM/ Flooded Lead-Acid/ Gel Batteries |
| Charging Current | 25 Amp |
| Output Voltage | 24 Volt |
| Input Voltage | 120 To 230 Volt |
| Number Of Stages | 3 Stage |
Description

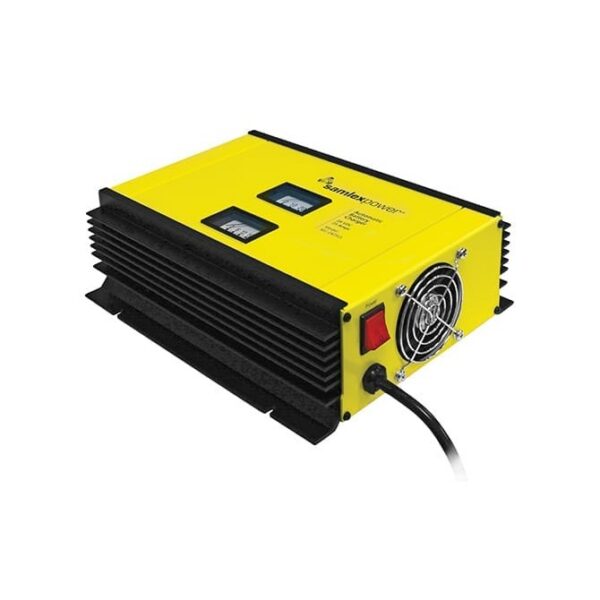

Charge your 24-volt RV batteries efficiently with this automated three-stage charger. It adapts to any lead-acid chemistry—flooded, AGM, or gel cell—and handles either 120V 60Hz or 230V 50Hz input via a front-panel DIP switch.

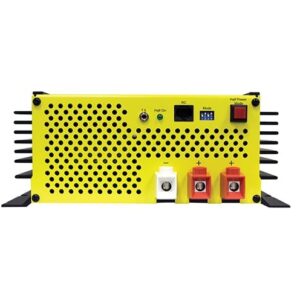

The charger manages two separate banks without requiring an isolator, doubling system capacity. Built-in protections guard against overload, short circuits, reverse polarity, and overheating. It also functions as a DC power supply or uninterruptible power system when needed.
- 25-amp output; charges two battery banks simultaneously
- Three-stage charging algorithm for all lead-acid types
- Input: 120V 60Hz or 230V 50Hz AC
- Output: 24 volts DC
- Dimensions: 13 x 9.6 x 3.8 inches
- Two-year warranty
