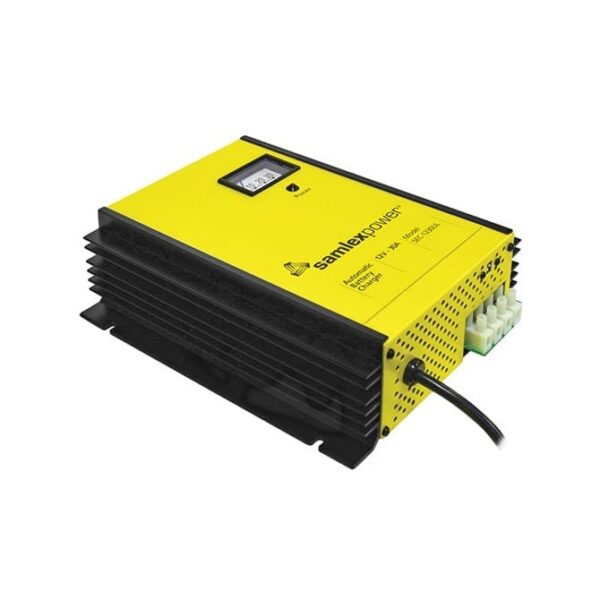

This 30-ampere battery charger supplies dual-bank charging with full protection against overload, short circuits, and thermal overages. Three-stage automatic charging optimises all lead-acid battery types, whilst DIP switches enable two-stage operation for systems with continuous DC loads.

• Charging current: 30 amperes
• Output voltage: 12 volts
• Input voltage: 120–230 volts (50/60 Hz selectable)
• Battery capacity: Charges up to 3 separate banks simultaneously
• Battery compatibility: Flooded, AGM, and gel-cell lead-acid types
• Charging stages: 3-stage or 2-stage (switchable)
• Protection: Overload, short-circuit, and over-temperature safeguards
• Function modes: Battery charger or DC power supply
• Warranty: Limited 2 years
• Marine-rated
