Specifications
| SKU | 06-3889 |
|---|---|
| Mfg # | MEGR-291LP |
| Brand | Marshall Excelsior |
| Weight | 0.903 kg |
| Dimensions | 17.78 × 10.16 × 7.62 cm |
| Pressure | Low Pressure |
| RV Approved | Yes |
| Inlet Connection | 1/4 Inch Female Threads |
| Outlet Connection | 3/8 Inch Female Threads |
| Installation Type | Vertical |
| Outlet Pressure | 11 Inch WC |
Description

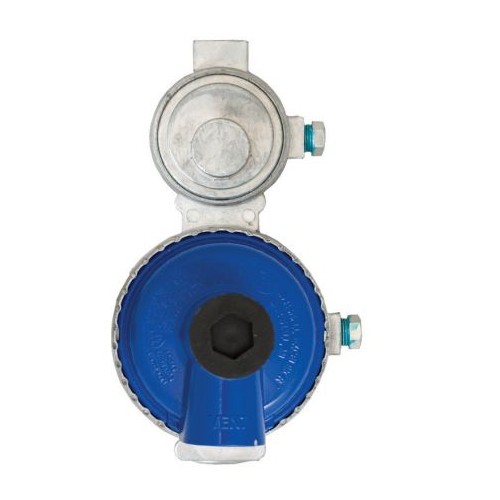

For RVs and manufactured homes requiring single or low-demand multi-appliance operation, Marshall Excelsior’s two-stage regulator provides flexible pressure adjustment without oversizing. Diagnostic pressure ports and optional vent angles simplify installation.
- Two-Stage Low Pressure Regulation
- 175,000 BTU Capacity
- 1/4-Inch Female Thread Inlet
- 3/8-Inch Female Thread Outlet
- Vertical Mount Configuration
- 11 Inch WC Outlet Pressure
- High and Low 1/8-Inch NPT Pressure Taps
- Integral Drip Lip Vent with 90-Degree Option
- Die-Cast Zinc Construction
- RV Approved
- UL, RVIA, and NFPA Standards Compliant
- Limited 5-Year Warranty
