Specifications
| SKU | 06-0450 |
|---|---|
| Mfg # | MEGR-298P |
| Brand | Marshall Excelsior |
| Weight | 0.608 kg |
| Dimensions | 17.78 × 10.16 × 7.62 cm |
| Pressure | Low Pressure |
| RV Approved | Yes |
| Inlet Connection | 1/4 Inch Female Threads |
| Outlet Connection | 3/8 Inch Female Threads |
| Installation Type | Horizontal |
| Outlet Pressure | 11 Inch WC |
Description

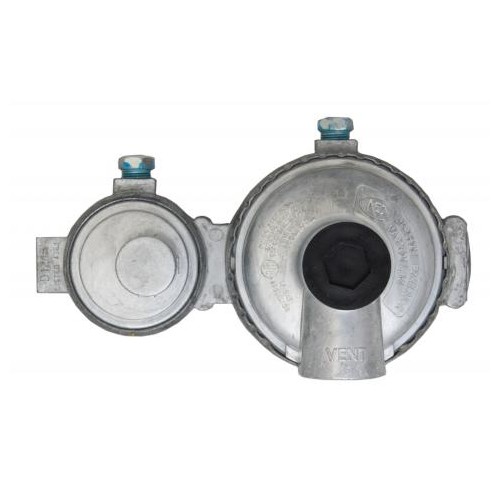

Two-stage regulator ideally suited for RVs, manufactured homes, cabins, and similar applications with moderate BTU demands. Horizontal mounting supports flexible system layouts with maximum pressure adjustment range.
- Two-stage regulation for 175,000 BTU applications
- 11-inch water-column outlet pressure setting
- 1/4-inch female thread inlet to 3/8-inch female outlet
- Horizontal installation; die-cast zinc body
- Adjustable output pressure across full operating range
- Integral drip lip vent with optional 90-degree vent positioning
- RV-approved; meets UL, RVIA, NFPA requirements; 5-year warranty
