Specifications
| SKU | 06-0445 |
|---|---|
| Mfg # | MEGR-291P |
| Brand | Marshall Excelsior |
| Weight | 0.594 kg |
| Dimensions | 17.78 × 10.16 × 7.62 cm |
| Pressure | Low Pressure |
| RV Approved | Yes |
| Inlet Connection | 1/4 Inch Female Threads |
| Outlet Connection | 3/8 Inch Female Threads |
| Installation Type | Vertical |
| Outlet Pressure | 11 Inch WC |
Description

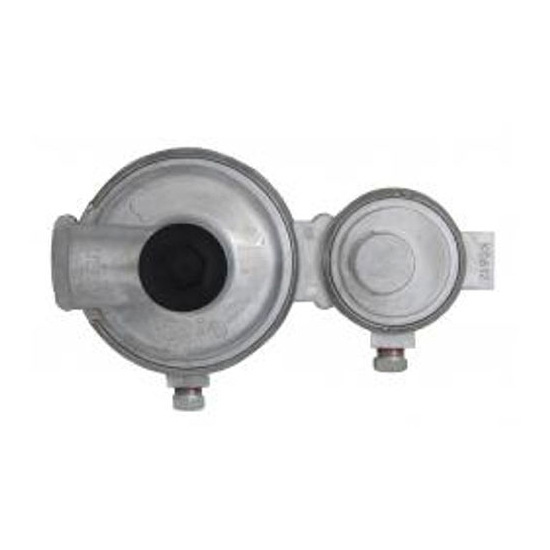

Dependable two-stage regulator built for portable and recreational applications where LP system monitoring is essential. Pressure tap ports enable technicians to test and troubleshoot performance.
- Two-stage regulation for 175,000 BTU systems
- 11-inch water-column outlet pressure
- High and low 1/8-inch NPT diagnostic ports
- Integral drip lip vent, optional 90-degree positioning
- 1/4-inch female thread inlet to 3/8-inch female thread outlet
- Vertical orientation; die-cast zinc body
- RV-certified; complies with UL, RVIA, NFPA; 5-year warranty
