Specifications
| SKU | 06-0440 |
|---|---|
| Mfg # | MEGR-253 |
| Brand | Marshall Excelsior |
| Weight | 0.885 kg |
| Dimensions | 17.78 × 8.89 × 7.62 cm |
| Pressure | Low Pressure |
| RV Approved | Yes |
| Inlet Connection | 1/4 Inch Female Inverted Flare |
| Outlet Connection | 3/8 Inch Female Threads |
| Installation Type | Vertical |
| Outlet Pressure | 11 Inch WC |
Description

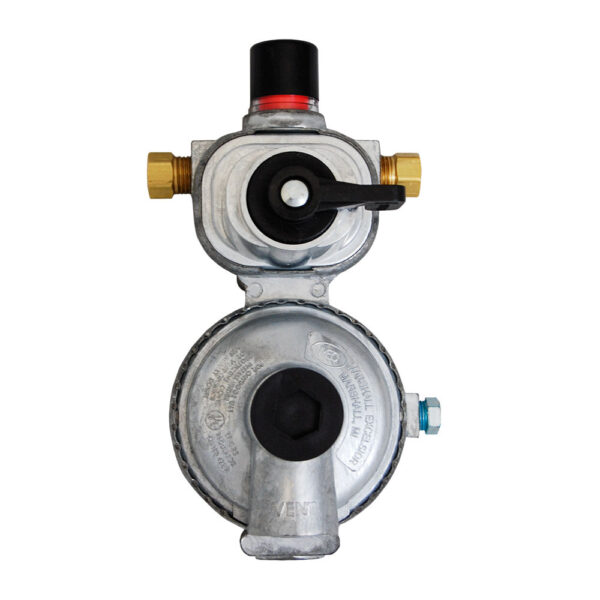

This two-stage regulator automatically manages LP system flow, switching between primary and backup cylinders to prevent supply interruption. Approved for RV applications and meets industry standards.
- Automatic dual-cylinder management maintains continuous service
- Two-stage pressure regulation with 11-inch water-column outlet
- Rated for 225,000 BTU systems
- 1/4-inch female inverted flare inlet to 3/8-inch female thread outlet
- Vertical mounting configuration
- Die-cast zinc body construction
- Status indicator transitions green (ready) to red (refill needed)
- Meets UL, RVIA, and NFPA requirements; 5-year limited warranty
