Specifications
| SKU | 20-1090 |
|---|---|
| Mfg # | GSNI-5300-20 |
| Brand | JR Products |
| Weight | 0.213 kg |
| Dimensions | 63.5 × 5.41 × 1.91 cm |
| Used For | Open/ Hold Open The Door/ Platform |
| Extended Length (IN) | 20 Inch |
| Compressed Length (IN) | 11.41 Inch |
| Upper Mounting Style | Socket |
| Lower Mounting Style | Socket |
| Load Capacity (LB) | 20 Pound |
Description

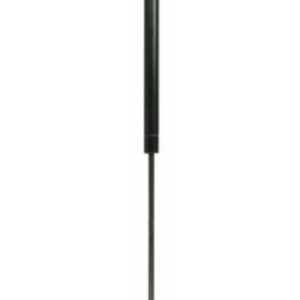

A lightweight gas spring reaching 20 inches for long-span, light-load RV applications such as small access doors and ventilation hatches. Its black nitride-treated steel construction resists corrosion whilst plastic end fittings with integrated locking clips provide secure mounting.
Socket-style connectors on both ends allow quick connection to standard RV lift support systems. Ideal when extended reach takes priority over lifting force.
- Extended length: 20 inches
- Compressed length: 11.41 inches
- Travel range: 6 inches
- Load capacity: 20 pounds
- Material: Steel with plastic end fittings
- Mounting: Socket-style (upper and lower)
- Installation time: 15 minutes
