Specifications
| SKU | 10-0110 |
|---|---|
| Mfg # | 04406143A |
| Brand | Flojet |
| Weight | 2.5 kg |
| Dimensions | 28 × 18 × 12 cm |
| Pump Operation | 12 Volt DC |
| Flow Rate | 3 Gallon Per Minute |
| Pressure Rating (PSI) | 35 Pound Per Square Inch |
| Type | Diaphragm |
| Inlet Port Type | 1/2 Inch Hose Barb |
| Outlet Port Type | 1/2 Inch Male Threads |
Description

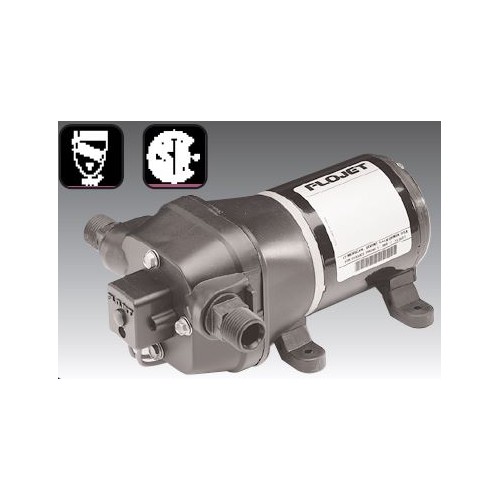

This 12-volt diaphragm pump handles fresh-water delivery for RV systems without requiring a separate accumulator tank. Running at 3 gallons per minute and 35 PSI, it powers up to 5 fixtures. The pump draws water through a 1/2-inch hose-barb inlet and pushes it out through 1/2-inch male-threaded connections. A built-in pressure switch controls cycling, and the polypropylene housing tolerates running dry without damage.
- 12V DC operation
- 3 GPM at 35 PSI
- Diaphragm pump type
- Inlet: 1/2 inch hose barb; outlet: 1/2 inch male threads
- Pressure switch included; no thermal overload protection
- Supports up to 5 fixtures
- 9-7/8 × 6-5/16 × 3-3/4 inches
