Specifications
| SKU | 07-4287 |
|---|---|
| Mfg # | 5015-BSS |
| Brand | Blue Sea Systems |
| Weight | 0.5 kg |
| Dimensions | 18 × 12 × 8 cm |
| Power Rating | 32 Volt/ 100 Amp |
| Type | Screw-On |
| Circuit Type | 6 Fuse Positions |
| Fuse Type | AGC/ MDL |
| Status Indicator Type | No Status Indicator |
| Cover Style | Protective Cover |
Description

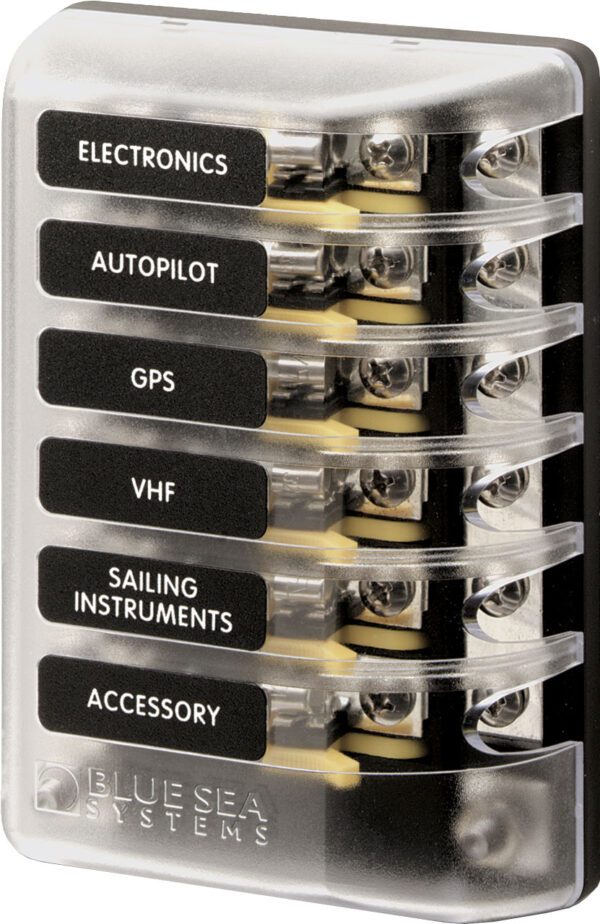

Six-position fuse block designed around the specifications recommended by inverter manufacturers for high-current circuit protection. Clear insulating cover features recesses for circuit labels and meets ABYC and USCG safety requirements. Tin-plated copper bus bars and phosphor bronze fuse clips deliver a 30-amp rating per circuit.
- 32 volt, 100 ampere rated
- 6 fuse positions for AGC and MDL fuses
- Screw-on mounting style
- Tin-plated copper buses and phosphor bronze fuse clips
- 30 amp per-circuit rating
- Clear protective cover with label recesses
- Includes ring terminals for wire gauge up to 1/0 AWG
- Meets ABYC and USCG insulation requirements
