Specifications
| SKU | 03-3460 |
|---|---|
| Mfg # | 2002-BSS |
| Brand | Blue Sea Systems |
| Weight | 0.109 kg |
| Dimensions | 15.24 × 13 × 5.08 cm |
| Type | Single Insulated |
| Thread Size | 5/16 Inch-18 |
| Base Material | Reinforced Thermoplastic |
| Material | Stainless Steel |
| With Cover | Yes |
| With Power Tapping Plate | No |
Description

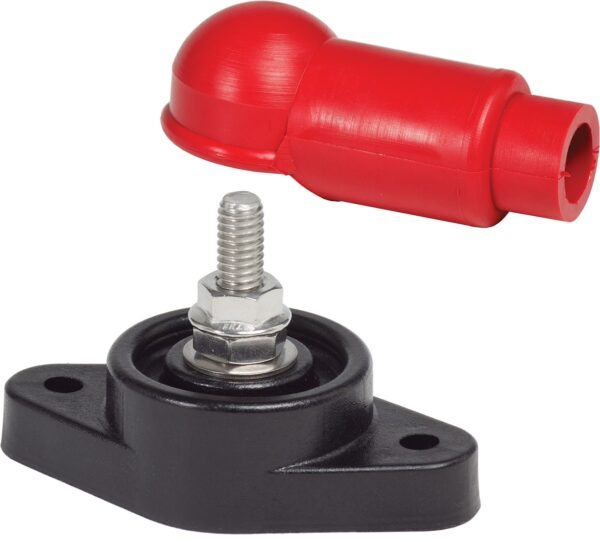

Consolidate multiple high-amperage cables at one connection point with this stainless steel busbar stud. The 5/16-inch thread accepts multiple large conductors, and the serrated flange nut locks everything securely in place. The reinforced thermoplastic base (PBT, UL94 V0 rated) insulates connections, and a protective cover keeps the assembly safe from accidental shorts. CE certified for marine and RV use.
- Stainless steel construction
- 5/16"–18 thread size
- Accepts multiple large conductors
- Serrated flange nut for secure locking
- Reinforced thermoplastic base (PBT UL94 V0)
- Protective cover included
- CE certified
