Specifications
| SKU | 46-6819 |
|---|---|
| Mfg # | 014-124903 |
| Brand | AP Products |
| Weight | 4.776 kg |
| Dimensions | 67.31 × 8.89 × 5.08 cm |
| Type | Eye And Eye Mount |
| Capacity (LB) | 1750 Pound |
| Spring Width (IN) | 1.72 To 1.85 Inch |
| Spring Free Length (IN) | 25-1/4 Inch |
| Number Of Leafs | 4 |
| Loaded Arch Height (IN) | 1-1/2 Inch |
Description

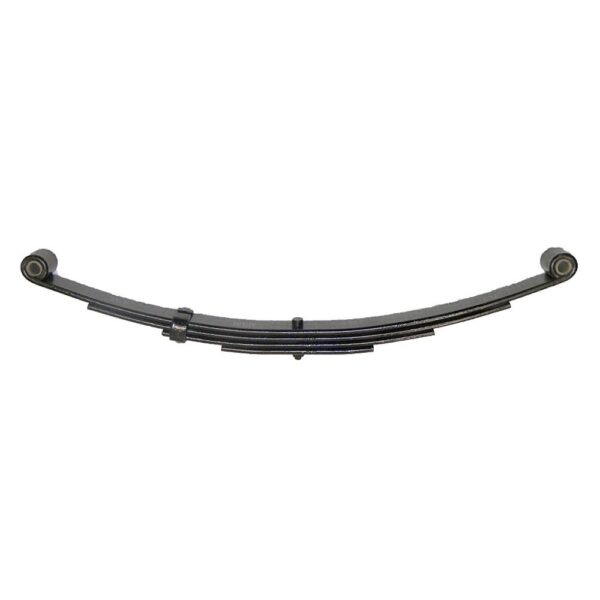

Four-leaf spring assembly for 1750-pound axles with an extended 25-1/4-inch free length. This configuration provides a lower 1.5-inch loaded arch, suitable for applications requiring minimal suspension lift.
- 1750-pound capacity
- Eye-and-eye mount
- 1.72 to 1.85 inch width
- 25-1/4 inch free length
- Four leafs
- 1-1/2 inch loaded arch height
